ssm框架整合

发布日期: 2021-02-03

更新日期: 2021-02-03

文章字数: 3.6k

阅读次数:

本文主要介绍了ssm整合的相关知识，由于本人也是初学，所以可能会有很多不对的地方，如果有不对的地方，希望大家能在评论区指正。

1.基本环境搭建

1.数据库准备

本文中使用的是sqlserver数据库，创建一个叫test的数据库，然后建立一个account的表，表的字段设计如下图：

2.创建maven工程

为了更方便的管理包，所以我们采用maven来进行包的管理工作，创建好maven管理的web项目(项目名为practice3)后，便是进行包的引入，修改pom.xml文件，修改为：

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>practice3</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>practice3 Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>11</maven.compiler.source>
    <maven.compiler.target>11</maven.compiler.target>

    <spring.version>5.0.2.RELEASE</spring.version>
    <slf4j.version>1.6.6</slf4j.version>
    <log4j.version>1.2.12</log4j.version>
    <mysql.version>5.1.6</mysql.version>
    <mybatis.version>3.4.5</mybatis.version>
    <tomcat.version>9.0.26</tomcat.version>
  </properties>


  <dependencies>
    <!-- 嵌入式Tomcat -->
    <dependency>
      <groupId>org.apache.tomcat.embed</groupId>
      <artifactId>tomcat-embed-core</artifactId>
      <version>${tomcat.version}</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>org.apache.tomcat.embed</groupId>
      <artifactId>tomcat-embed-jasper</artifactId>
      <version>${tomcat.version}</version>
      <scope>provided</scope>
    </dependency>

    <!-- jdbc驱动-->
    <dependency>
      <groupId>com.microsoft.sqlserver</groupId>
      <artifactId>mssql-jdbc</artifactId>
      <version>8.4.1.jre11</version>
      <scope>runtime</scope>
    </dependency>

    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.6.8</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>compile</scope>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.0</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency> <!-- log start -->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-log4j12</artifactId>
      <version>${slf4j.version}</version>
    </dependency> <!-- log end -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>
    <dependency>
      <groupId>c3p0</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.1.2</version>
      <type>jar</type>
      <scope>compile</scope>
    </dependency>
  </dependencies>


  <build>
    <finalName>practice2</finalName>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

3.建立实体类

建立一个存取数据的实体类Account（再com.gx.domain包中建立),实体类的代码如下：

package com.gx.domain;

import java.io.Serializable;

public class Account implements Serializable {
    private Integer id;
    private String name;
    private Double money;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public Double getMoney() {
        return money;
    }

    public void setMoney(Double money) {
        this.money = money;
    }

    @Override
    public String toString() {
        return "Account{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

实体类的三个属性分别对应了数据库的三个属性列。

4.编写service接口和service实现类

service接口：

package com.gx.service;

import com.gx.domain.Account;

import java.util.List;

public interface AccountService {
    // 查询所有账户
    public List<Account> findAll();

}

service实现类：

package com.gx.service.Impl;

import com.gx.domain.Account;
import com.gx.service.AccountService;
import org.springframework.stereotype.Service;

import java.util.List;
@Service("accountService")
public class AccountServiceImpl implements AccountService {

    @Override
    public List<Account> findAll() {
        System.out.println("Service业务层：查询所有账户...");
        return null;
    }
}

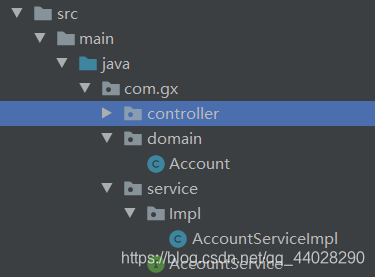

到这里基本环境就配置好了，目录结构如下：

2.Spring框架的实现

1.编写applicationContext.xml的配置文件

创建applicationContext.xml文件，然后文件内容编写如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/aop
    http://www.springframework.org/schema/aop/spring-aop.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--开启注解的扫描，希望处理service和dao，controller不需要Spring框架去处理-->
    <context:component-scan base-package="com.gx" >
        <!--配置哪些注解不扫描-->
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" />
    </context:component-scan>

</beans>

3.SpringMVC的实现

1.修改web.xml

对web.xml进行修改，修改后如下：

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns="http://java.sun.com/xml/ns/javaee"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
        version="3.0">
  <display-name>Archetype Created Web Application</display-name>

    <!--配置前端控制器-->
  <servlet>
     <servlet-name>dispatcherServlet</servlet-name>
      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
      <!--加载springmvc.xml配置文件-->
      <init-param>
          <param-name>contextConfigLocation</param-name>
          <param-value>classpath:springmvc.xml</param-value>
      </init-param>
      <!--启动服务器，创建该servlet-->
      <load-on-startup>1</load-on-startup>
  </servlet>
    <servlet-mapping>
        <servlet-name>dispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--解决中文乱码的过滤器-->
    <filter>
        <filter-name>characterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>characterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

2.编辑springmvc.xml文件

创建springmvc.xml文件，文件的内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/mvc
        http://www.springframework.org/schema/mvc/spring-mvc.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">
    <!--开启注解扫描，只扫描Controller注解-->
    <context:component-scan base-package="com.gx">
        <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

    <!--配置的视图解析器对象-->
    <bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
    <!--开启SpringMVC注解的支持-->
    <mvc:annotation-driven/>
</beans>

3.创建jsp页面和控制层代码

修改index.jsp页面(由于建立的是web项目，所以会有一个index.jsp文件，所以直接修改这个文件就可以了)，修改后的内容如下：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<body>
<form action="/account/findAll" method="get">
    <button type="submit">查询数据库数据</button>
</form>
</body>
</html>

然后创建控制类AccountController,内容如下：

package com.gx.controller;

import com.gx.domain.Account;
import com.gx.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.List;

@Controller
public class AccountController {

    @RequestMapping("/account/findAll")
    public String findAll(){
        System.out.println("Controller表现层：查询所有账户...");
        return "list";  //在视图解析器中配置了前缀后缀
    }
}

然后建立跳转后的list页面，在图示目录下建立list.jsp文件，

list.jsp的内容如下：

<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>

<html>
<head>
    <title>Title</title>
</head>
<body>
<h2>查询所有的账户</h2>
<tr>
    <td>ID</td>
    <td>名称</td>
    <td>余额</td>
</tr>
<br>
<c:forEach items="${list}" var="account">
    <tr>
        <td>${account.id}</td>
        <td>${account.name}</td>
        <td>${account.money}</td>
    </tr>
    <br>
</c:forEach>
</body>
</html>

4.部署tomcat进行测试

从前面maven引入的包中可以看出，项目是采用引入tomcat的相应包来启动tomcat服务的，所以只需编写一个Main类负责启动tomcat即可。编写的Main类如下：

package com.gx;

import org.apache.catalina.Context;
import org.apache.catalina.WebResourceRoot;
import org.apache.catalina.startup.Tomcat;
import org.apache.catalina.webresources.DirResourceSet;
import org.apache.catalina.webresources.StandardRoot;

import java.io.File;

public class Main {
    public static void main(String[] args) throws Exception {
        Tomcat tomcat = new Tomcat();
        tomcat.setPort(Integer.getInteger("port", 8080));
        tomcat.getConnector();
        Context ctx = tomcat.addWebapp("", new File("src/main/webapp").getAbsolutePath());
        WebResourceRoot resources = new StandardRoot(ctx);
        resources.addPreResources(
                new DirResourceSet(resources, "/WEB-INF/classes", new File("target/classes").getAbsolutePath(), "/"));
        ctx.setResources(resources);
        tomcat.start();
        tomcat.getServer().await();
    }
}

然后运行main类的main方法，在游览器输入localhost:8080后，显示主页面，点击按钮，能成功的跳转即为成功。

5.Spring整合SpringMVC

1.在web.xml中配置ContextLoaderListener监听器

在web.xml中加入ContextLoaderListener监听器，代码如下：

 <!--配置Spring的监听器，默认只加载WEB-INF目录下的applicationContext.xml配置文件-->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
 <!--设置配置文件的路径-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContext.xml</param-value>
    </context-param>

2.controller中注入service对象，调用service对象方法

修改AccountController.java文件，修改后如下：

package com.gx.controller;

import com.gx.domain.Account;
import com.gx.service.AccountService;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.List;

@Controller
public class AccountController {

    @Autowired
    private AccountService accountService ;

    @RequestMapping("/account/findAll")
    public String findAll(Model model) {  //存数据， Model对象
        System.out.println("Controller表现层：查询所有账户...");
        // 调用service的方法
        List<Account> list = accountService.findAll();
        model.addAttribute("list",list);
        return "list";
    }
}

6.MyBatis的实现

1.创建SqlMapConfig.xml文件

内容如下：

<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <environments default="sql-server">
        <environment id="sql-server">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <property name="driver" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/>
                <property name="url" value="jdbc:sqlserver://localhost:1433;DatabaseName=test"/>
                <property name="username" value="root"/>
                <property name="password" value="1234567890"/>
            </dataSource>
        </environment>
    </environments>
<!--    &lt;!&ndash; 使用的是注解 &ndash;&gt;-->
<!--    <mappers>-->
<!--        &lt;!&ndash; <mapper class="com.gx.dao.IAccountdao"/> &ndash;&gt; &lt;!&ndash; 该包下所有的dao接口都可以使用 &ndash;&gt;-->
<!--        <package name="com.gx.dao"/>-->
<!--    </mappers>-->
    <!-- 配置映射资源文件-->
    <mappers>
        <mapper resource="userMapper.xml"/>
    </mappers>
</configuration>

2.建立userMapper.xml

内容如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gx.domain.Account">
    <!-- 查询全部用户-->
    <select id="queryAccounts" resultType="com.gx.domain.Account">
        select * from account
    </select>
</mapper>

3.建立MyBatisutil文件

创建MyBatisutil.java文件，用于获取sqlsession对象，文件内容如下：

package com.gx.util;

import java.io.IOException;
import java.io.InputStream;

import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;

/**
 * 工具类
 *
 */
public class MyBatisutil {
    //创建SqlSessionFactory对象
    private static SqlSessionFactory factory;
    static{
        try {
            //获取配置文件资源
            InputStream inputStream=Resources.getResourceAsStream("SqlMapConfig.xml");
            //获取SqlSessionFactory对象
            factory=new SqlSessionFactoryBuilder().build(inputStream);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    /**
     * 获取SqlSession对象
     */
    public static SqlSession getSqlSession(){
        return factory.openSession();
    }

    /**
     * 关闭SqlSession对象
     */
    public static void closeSqlSession(SqlSession session){
        if(null!=session){
            //关闭Sqlsession对象
            session.close();
        }
        session=null;
    }
}

7.Spring整合MyBatis

1.在applicationContext.xml中配置数据库连接池

配置的代码如下：

<!--Spring整合MyBatis框架-->
    <!--配置连接池-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="com.mysql.jdbc.Driver"/>
        <property name="jdbcUrl" value="jdbc:mysql:///ssm"/>
        <property name="user" value="root"/>
        <property name="password" value="root"/>
    </bean>

最终的applicationContext.xml文件如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/aop
    http://www.springframework.org/schema/aop/spring-aop.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!--开启注解的扫描，希望处理service和dao，controller不需要Spring框架去处理-->
    <context:component-scan base-package="com.gx" >
        <!--配置哪些注解不扫描-->
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" />
    </context:component-scan>

    <!--Spring整合MyBatis框架-->
    <!--配置连接池-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/>
        <property name="jdbcUrl" value="jdbc:sqlserver://localhost:1433;DatabaseName=test"/>
        <property name="user" value="root"/>
        <property name="password" value="1234567890"/>
    </bean>

</beans>

8.收尾部分

到这里ssm的整合基本完成，接下来就是来编写自己的业务逻辑的部分。

1.完善AccountServiceImpl实现类

代码如下：

package com.gx.service.Impl;

import com.gx.domain.Account;
import com.gx.service.AccountService;
import com.gx.util.MyBatisutil;
import org.apache.ibatis.session.SqlSession;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service("accountService")
public class AccountServiceImpl implements AccountService {

    @Override
    public List<Account> findAll() {
        System.out.println("Service业务层：查询所有账户...");
        // 获取SqlSession对象
        SqlSession session = MyBatisutil.getSqlSession();
        // 查询全部对象
        List<Account> list = session.selectList("com.gx.domain.Account.queryAccounts");
        return list;
    }
}

2.运行测试

测试成功的页面如下：

点击按钮
这里查到的数据和数据库的数据相同。

完结，撒花🎉！

到这里这篇文章就结束了。如果有错误，可以在下方评论，或者私聊我😉，我会及时改正的。

http://vrerain.website/2021/02/03/ssm-kuang-jia-zheng-he/

本博客所有文章除特別声明外，均采用 CC BY 4.0 许可协议。转载请注明来源 vrerain !

评论

本篇

ssm框架整合

ssm框架整合

进行ssm架构的基本了解

2021-02-03 Java学习

下一篇

在IDEA上进行JUnit测试

在IDEA上进行JUnit测试

在IDEA上进行JUnit测试的一些配置

2020-10-02 Java学习
